Transmatch - 1,5 - 30 MHz TM 535

Zetagi S.p.A.; Concorezzo, Milano

Data

Forum

Pictures

Collections

Country
Italy

Manufacturer / Brand
Zetagi S.p.A.; Concorezzo, Milano

Year
1985 ??

Category
Amateur Equipment (Other, but not Key)

Radiomuseum.org ID
235545

- Brand: ZG

Schematics

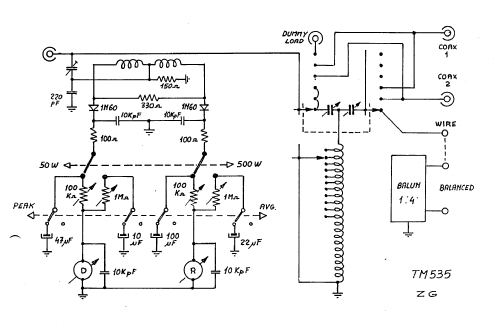

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1868966) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (3)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995972) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995973) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1449538) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1449540) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995974) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995975) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995976) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995977) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

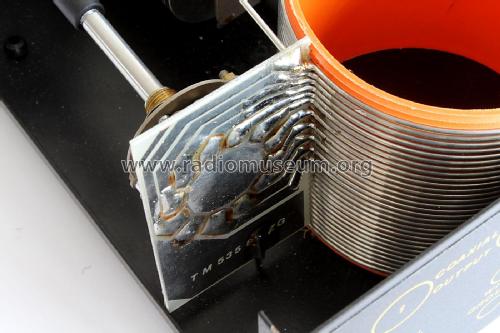

Transmatch - 1,5 - 30 MHz TM 535; Zetagi S.p.A.; (ID = 1995978) Amateur-D — Zetagi S.p.A.; Transmatch - 1,5 - 30 MHz TM 535 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Wave bands
Short Wave (SW only)

Power type and voltage
No Power needed

Loudspeaker
- - No sound reproduction output.

Material
Metal case

from Radiomuseum.org
Model: Transmatch - 1,5 - 30 MHz TM 535 - Zetagi S.p.A.; Concorezzo,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
270 x 90 x 210 mm / 10.6 x 3.5 x 8.3 inch

Net weight (2.2 lb = 1 kg)
2.380 kg / 5 lb 3.9 oz (5.242 lb)

Author
Model page created by a member from A. See "Data change" for further contributors.

Other Models
Here you find 72 models, 72 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zetagi S.p.A.; Concorezzo, Milano

Collections | Museums | Literature

Collections

The model Transmatch - 1,5 - 30 MHz is part of the collections of the following members.
