• Country
• Italy

• Manufacturer / Brand
• Zetagi S.p.A.; Concorezzo, Milano

• Year
• 1980 ??

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 255673

• • Brand: ZG

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

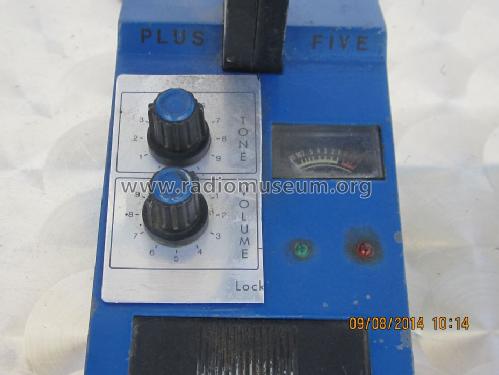

• Model: Verstärker - Standmikrofon MB +5 - Zetagi S.p.A.; Concorezzo,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Stationsmikrofon vornehmlich für den Gebrauch im CB-Funk.

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Author
• Model page created by Horst Lechner. See "Data change" for further contributors.
