• Country
• Germany

• Manufacturer / Brand
• Zodiac Funkgeräte GmbH, Düsseldorf

• Year
• 1972 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 183860

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / =12-14 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

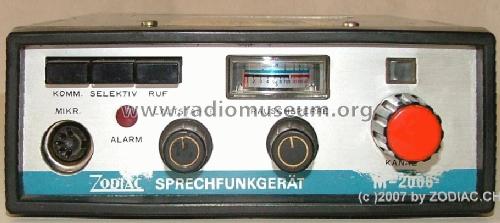

• Model: Sprechfunkgerät M-2006D - Zodiac Funkgeräte GmbH,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Zodiac Sprechfunkgerät M-2006D;
  AM, 27 MHz Kanal 1 - 6, 1 W HF out, S-Meter, DIN Mic. Buchse, FTZ Nr.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
