crosley: Ch= 7H3 (7 H 3); 72LB Lowboy

To thank the Author because you find the post helpful or well done.

Hi Dave, if you use a series light bulb the voltage applied to the transformer will be substantially lower and therefore you cannot expect the tubes to light up. If the transformer is bad, it probably was that way before you started your tests. You need to make sure there are no shorts on the transformer secondary (80 tube, electrolitics, etc) before applying any power. The smell can come from a number of different parts, did you visually inspect the chassis?

Since you did not get full bright in your dimm bulb we can safely assume the transformer's primary is not shorted. The very dimm glow on the 250W bulb, on the other hand, indicates the primary winding is not open.

To properly finish testing the transformer, remove the 80 tube and connect to the mains. If you want to be 100% sure then disconnect all secondary windings as well. You should measure high tension, 5V for the 80's filament and 6,3v at the other filament winding.

Good luck.

To thank the Author because you find the post helpful or well done.

Thanks Mario,   If you bear with me, I'll ask some more questions. You stated:

>> did you visually inspect the chassis?

Yes, I looked it over carefully, and I did find one wire leading to tube 80 that looked as if the insulation was burned off, but not burned through, in a section about 1/2" long or less.

>>Since you did not get full bright in your dimm bulb we can safely assume the transformer's primary is not shorted. The very dimm glow on the 250W bulb, on the other hand, indicates the primary winding is not open.

ie: shorted out?

 >>To properly finish testing the transformer, remove the 80 tube and connect to the mains.

Not sure what "connect to the mains" means

Sorry for my ignorance, but I'm trying.

Thanks, Dave

To thank the Author because you find the post helpful or well done.

No problem at all Dave, can you post a picture of the underside of the chassis showing the transformer connections? This way we can figure it out together.

Mario

To thank the Author because you find the post helpful or well done.

Getting back to this old 7H3, I did confirm that the transformer is 'gone'!  Also, the speaker coil has mega resistance.  I understand this is a vital part of the circuitry on this chassis.  sounds like I have major problems.  I'm about ready to put this one on the shelf or pass it one to someone who is capable of repairing it.  I really hate to do that, it's a nice looking dial with the 82:1 ratio 'fishing rod' tuning dial.

Anyway, I'm going to try to post the requested pictures here, in hopes that the generous wisdom of this list has some beneficial guidance for me.

• 7H3 trnsfrmr (57 KB)

To thank the Author because you find the post helpful or well done.

Will attempt to load some better pictures regarding my last message, on The poor old Crosley.

Dave

• 2008_04020009 (43 KB)

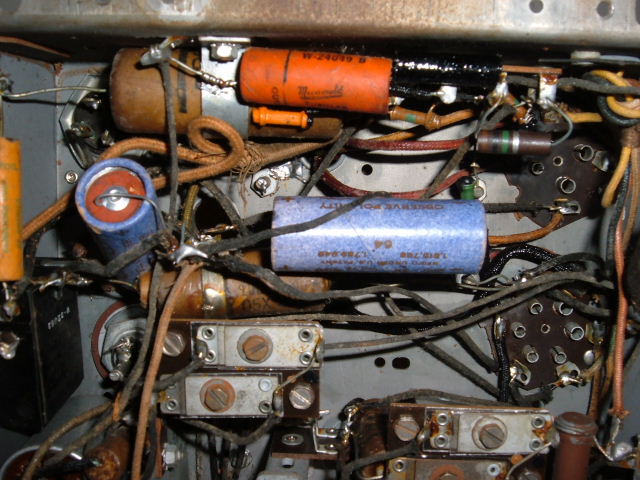

• 2008_04020011 (92 KB)
• 2008_04020012 (44 KB)

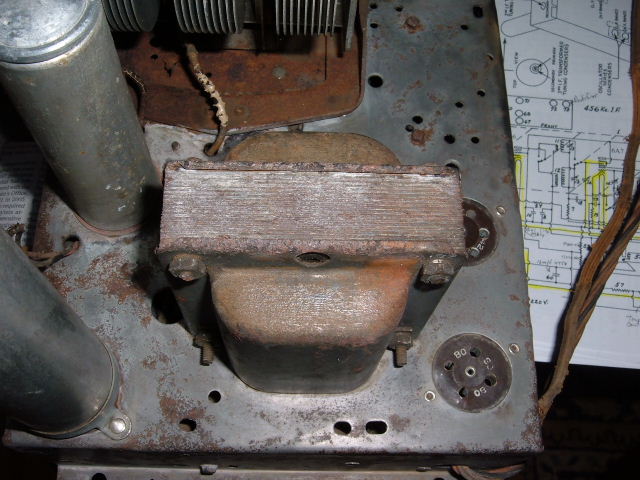

• 2008_04020014 (77 KB)
