One tube Radio + crystal set IN ONE ...



      Small  radio  manufacturer in Lithuania   KARADI,  in 1935 - 1936  produced  radio  set  TAUTOFONAS.  It was battery  one  tube  regenerative  radio + crystal  radio in one case, one schemat.

Radio  coverage  three  waves  - SW  (19 - 50 m), MW, LW.

For  crystal  radio -  used others  earphones  plugs T2 on radio front panel (red plugs)   - for tube radio others T1  (black plugs). See photo...

Used  cathode  grid  VALVO U107D  tube   in schemat --   (analog A141  Philips).

All info - photos and  schemat  are   in RMorg  site >>>>>>>

http://www radiomuseum.org/r/karadi_tautofonas.html

QUESTION :

Do you  know any  analog  radio  set , as this  TAUTOFONAS --  with  one  tube  regenerative  and  crystal  radio in one  case. Which  company  produced  similar  set  - in 1926-1936 ?   By the way - nice moderm  walnut tree case..





Bildbreite editiert, max. 600Pixel breit !!!!!

To thank the Author because you find the post helpful or well done.

Dear Zenonas,

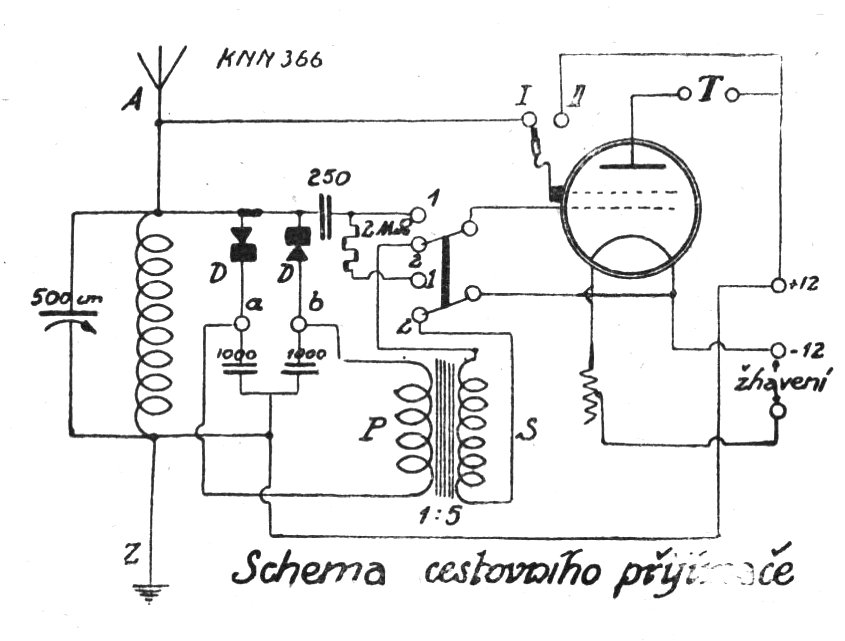

the model http://www.radiomuseum.org/r/knn_negadyn.html has some similar function, either crystal set with one tube amplifier or one tube negadyn through positive interaction between the grids.

BR, Gabriel

To thank the Author because you find the post helpful or well done.

Dear Gabriel

May I add a minor correction to the drawing above...

The space charge grid is the one next to the filament and normally connected at the screw on the base. It is kept at a positive potential all the time.

Kind regards

Wolfgang
