• Country
• Belgium

• Manufacturer / Brand
• ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

• Year
• 1959–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112406

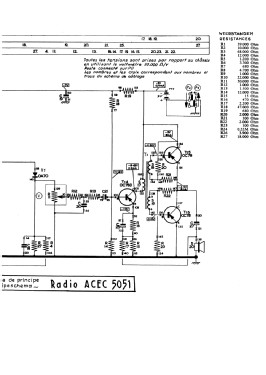

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC78D OC78 OC78 OA70

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 1 x 9 or 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Côte d'Azur 5051 - ACEC, Ateliers de

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 180 x 80 mm / 9.4 x 7.1 x 3.1 inch

• Notes

• 2 gammes PO et GO. Antenne incorporée. Prise pour antenne auto.

  Boîtier en bois poli, bordeaux foncé.

  Voir aussi modèle comparable Cossor CR1300T.

• Mentioned in

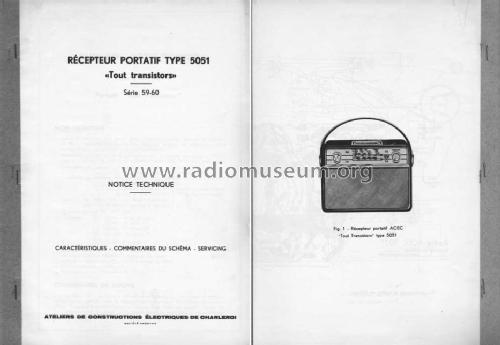

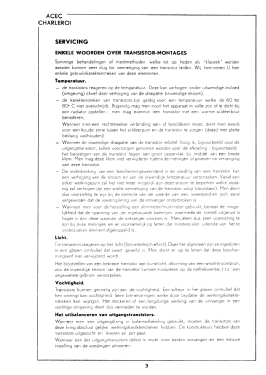

• -- Original-techn. papers.

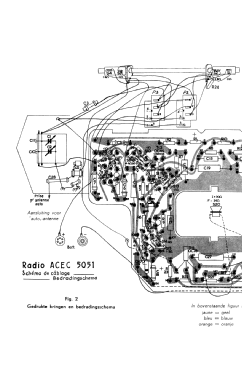

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.
