Générateur synthétiseur / Synthesized Signal Generator CS201B

• Country
• France

• Manufacturer / Brand
• Adret Électronique; Trappes

• Year
• 1967 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 202469

• Picture

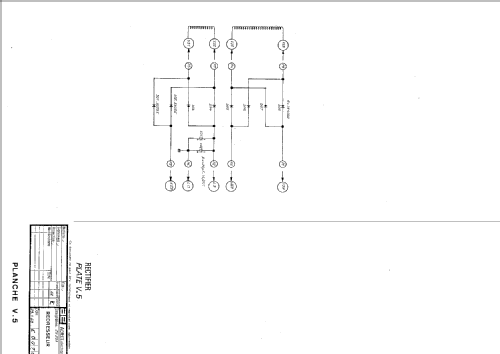

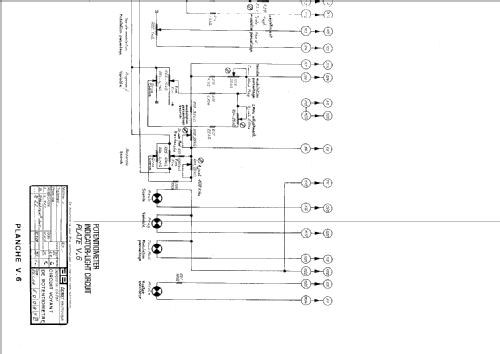

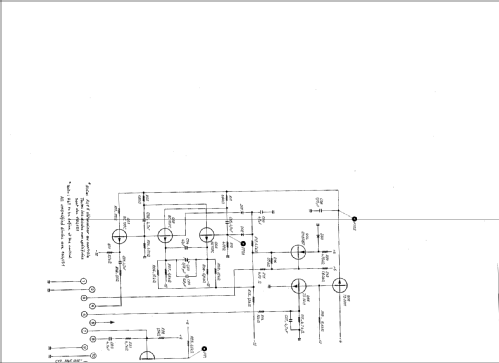

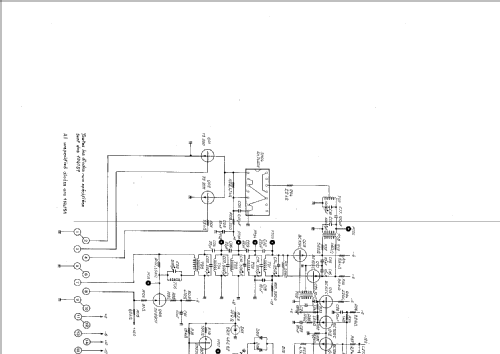

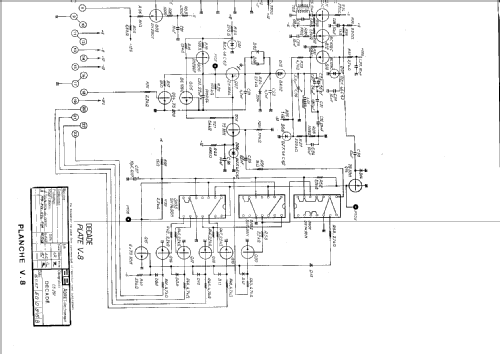

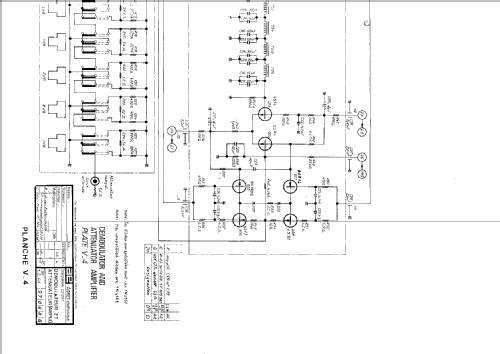

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115-127; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Générateur synthétiseur / Synthesized Signal Generator CS201B - Adret Électronique; Trappes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 88 x 340 mm / 17.3 x 3.5 x 13.4 inch

• Notes
• Frequency from 0,1 Hz to 2 Mhz.
  Quartz oscillator signal generation by multiplying and adding main frequency and harmonics, and comparison with a preset value with a stability of 2*10 exp-8 /24H.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Claude Brunet. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 5 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Adret Électronique; Trappes
