Der Große AEG 97GWK

• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1937–1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177

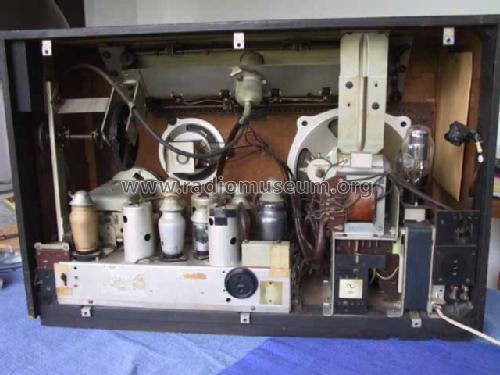

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

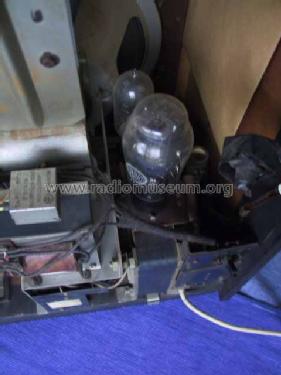

• Valves / Tubes
• CH1 CK1 CF3 CF3 C/EM2 CB1 CC2 CL4 CL4 optional RGN2004

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 9 AM circuit(s)

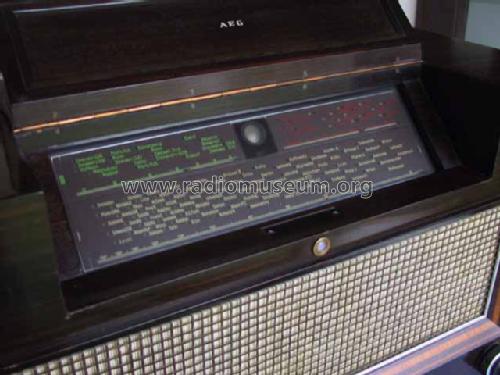

• Wave bands
• Broadcast, Long Wave and Short Wave.

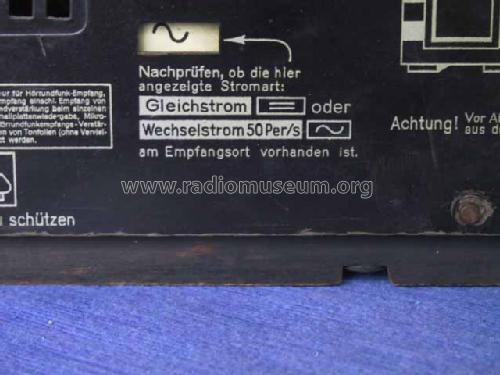

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Der Große AEG 97GWK - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 700 x 470 x 295 mm / 27.6 x 18.5 x 11.6 inch

• Notes
• AEG Der Große AEG Allstrom-Super 97.
  Auch als GWLK.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 635.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Preisl. Otto Gruoner 1937

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
