• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18087

• • alternative name: AGA-Baltic Radio AB; Stockholm

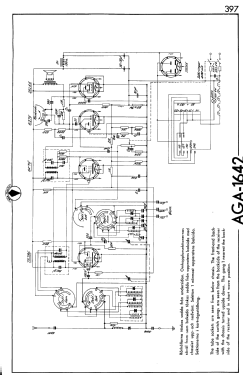

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7SJ8G 6K7G 6Q7G 25L6G 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 463 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1642 - AGA and Aga-Baltic Radio AB;

• Dimensions (WHD)
• 460 x 321 x 235 mm / 18.1 x 12.6 x 9.3 inch

• Price in first year of sale
• 490.00 SFR

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• - - Manufacturers Literature (AGA-Baltic service documentation 1945-46)
