• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18111

• • alternative name: AGA-Baltic Radio AB; Stockholm

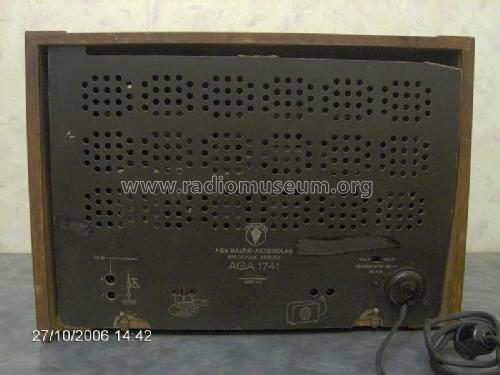

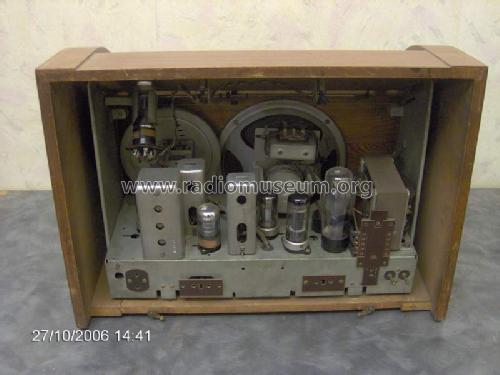

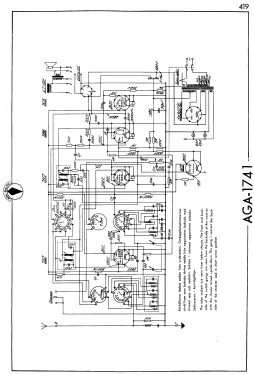

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7S7 7H7 7B6 7C5 6E5 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 463 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1741 - AGA and Aga-Baltic Radio AB;

• Dimensions (WHD)
• 480 x 335 x 255 mm / 18.9 x 13.2 x 10 inch

• Price in first year of sale
• 625.00 SFR

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• - - Manufacturers Literature (AGA-Baltic service documentation 1946-48)
