- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25240
-
- alternative name: AGA-Baltic Radio AB; Stockholm

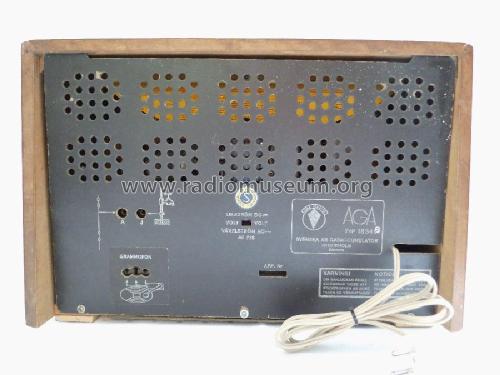

Courtesy www.skanesauktionsverk.se
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1834 - AGA and Aga-Baltic Radio AB;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 415 x 280 x 210 mm / 16.3 x 11 x 8.3 inch
- Notes
-
Schema ohne Detailangaben
Cabinet comes in mahogany, elm or walnut
- External source of data
- Wiesmüller
- Source of data
- Lange, Schaltungen der Funkindustrie
- Mentioned in
- AGA-Radio service document 1948-49 and 1949-50
