- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336724
-
- alternative name: AGA-Baltic Radio AB; Stockholm

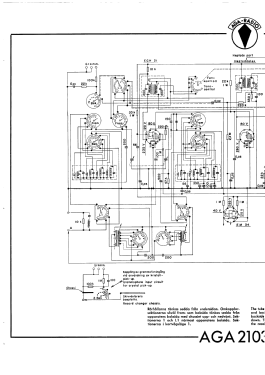

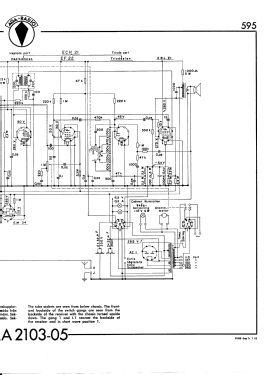

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2105 - AGA and Aga-Baltic Radio AB;
- Shape
- Console, Lowboy (legs < 50 %).
- Mentioned in

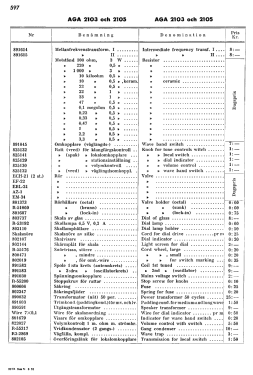

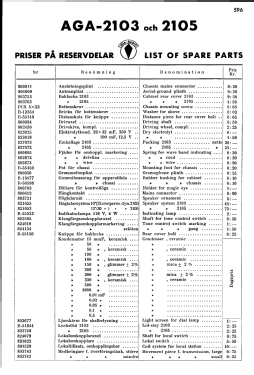

- - - Manufacturers Literature (AGA-Radio 1951-52 service documentation)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
