- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336942
-
- alternative name: AGA-Baltic Radio AB; Stockholm

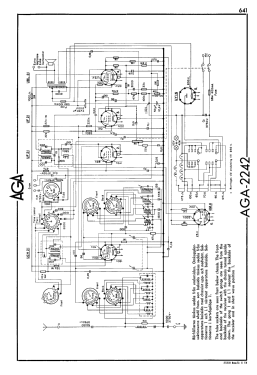

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2242 - AGA and Aga-Baltic Radio AB;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
See for AC version model AGA 2241.
- Mentioned in
- - - Manufacturers Literature (AGA-Radio 1952-53 service documentation)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
