- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166759
-
- alternative name: AGA-Baltic Radio AB; Stockholm

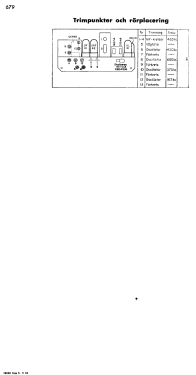

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2424 - AGA and Aga-Baltic Radio AB;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Mentioned in

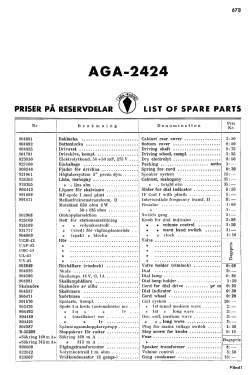

- - - Manufacturers Literature (AGA-Radio service documentation 1953-54)
- Author
- Model page created by Volker Bähr. See "Data change" for further contributors.
