- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 234247
-
- alternative name: AGA-Baltic Radio AB; Stockholm
From Radiomuseum in Gothenburg, Sweden.
From Radiomuseum in Gothenburg, Sweden.

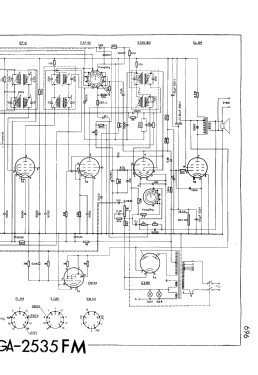

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 463/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2535FM - AGA and Aga-Baltic Radio AB;
- Shape
- Tablemodel, with any shape - general.
- Mentioned in
- - - Manufacturers Literature (AGA-Radio service documentation 1954-55)
- Author
- Model page created by Bo Sörensson. See "Data change" for further contributors.
