- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337177
-
- alternative name: AGA-Baltic Radio AB; Stockholm
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Superheterodyne (common); ZF/IF 463/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2624 - AGA and Aga-Baltic Radio AB;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Elliptical loudspeaker: 5 x 8 inch.
- Mentioned in

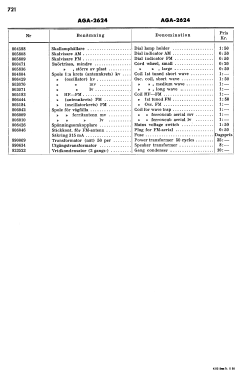

- -- Original-techn. papers. (AGA radio service documentation 1955-1956.)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
