- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 279299
-
- alternative name: AGA-Baltic Radio AB; Stockholm
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 1 × 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

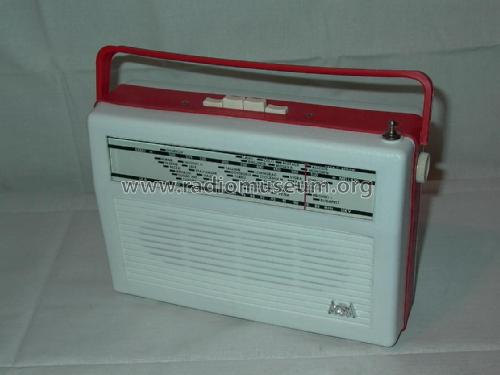

- Model: 3302 - AGA and Aga-Baltic Radio AB;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 190 x 90 mm / 10.6 x 7.5 x 3.5 inch
- Notes
-
Very rare Swedish export version with dial texts in Finnish.
Catalog photo can be found on the Internet from the Dutch AGA museum.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by Stig Lundström. See "Data change" for further contributors.
