- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25298
-
- alternative name: AGA-Baltic Radio AB; Stockholm
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8546 - AGA and Aga-Baltic Radio AB;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 900 x 725 x 430 mm / 35.4 x 28.5 x 16.9 inch
- Notes
-
This radio was available in two versions, 8546 and 8546B. The 8546 is equipped with a dial until March 15, 1950, while the 8546B is equipped with a double-printed dial.
- External source of data
- Wiesmüller
- Source of data
- Lange, Schaltungen der Funkindustrie
- Mentioned in

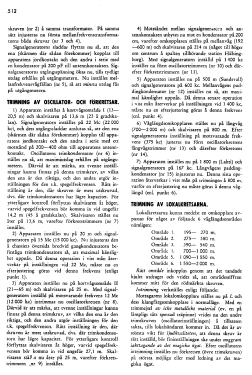

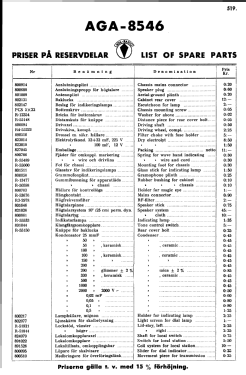

- - - Manufacturers Literature (AGA-Radio service document from 1948-50)
