• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202161

• • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC615 OC615 AF105 AF105 AF105 AC122 AC122 AC117 AC117

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 5 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

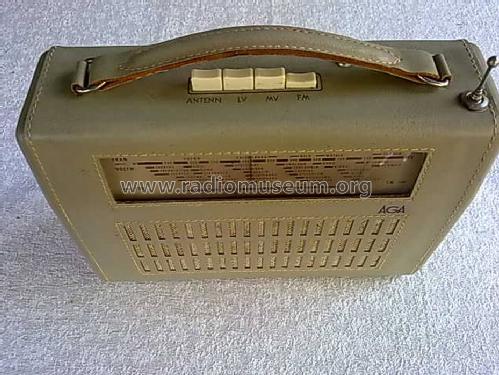

• Model: Transistor 3420 - AGA and Aga-Baltic Radio AB;

• Dimensions (WHD)
• 270 x 190 x 95 mm / 10.6 x 7.5 x 3.7 inch

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Author
• Model page created by Pentti Lamminen. See "Data change" for further contributors.
