- Country
- United States of America (USA)
- Manufacturer / Brand
- Air King Products Co.; Brooklyn (NY)
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232449
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4.7 inch = 11.9 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: A-625 - Air King Products Co.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
AC-DC Operated Superheterodyne Receiver with Loop Antenna
AM: 540-1600kc.
- Mentioned in

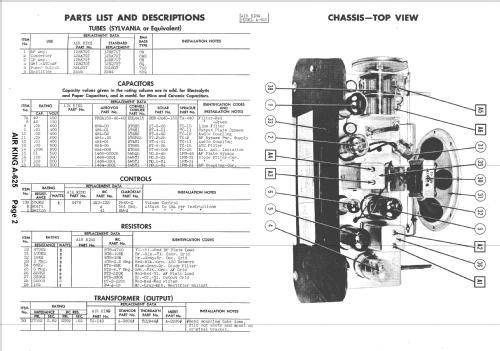

- Photofact Folder, Howard W. SAMS (Vol.5 11/48 4820-3 Set 50 Folder 3)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
