A-403 "Court Jester" Ch= 470-2
Air King Products Co.; Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Air King Products Co.; Brooklyn (NY)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31675
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org

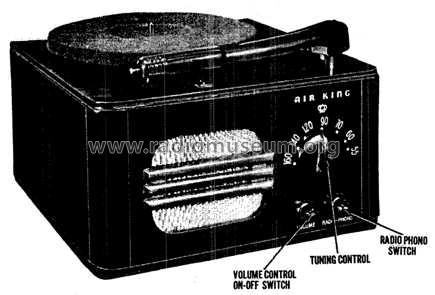

- Model: A-403 "Court Jester" Ch= 470-2 - Air King Products Co.;
- Shape
- Tablemodel, with any shape - general.
- Price in first year of sale
- 39.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 20, Folder 4710-2)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (March 1947 page 27.)
