• Country
• Great Britain (UK)

• Manufacturer / Brand
• Airmec Ltd.; Perivale

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330676

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8G 6K7G 6Q7G 6V6G 5Z4G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-120; 200-250 Volt

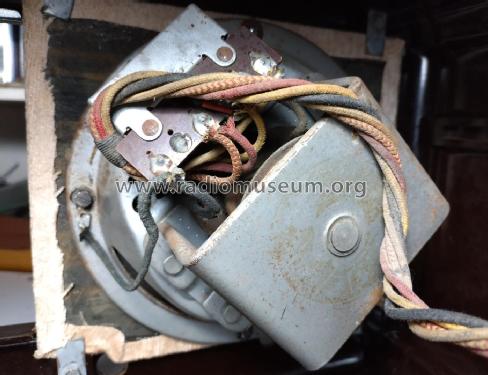

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 4 W (6 W max.)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: AT.535 - Airmec Ltd.; Perivale

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15.5 x 10 x 8 inch / 394 x 254 x 203 mm

• Notes

• An AC mains 3 band table radio housed in a bakelite cabinet. Terminals for gramophone pickup and external loudspeaker. Same as the GB Philco A535B with additional mains voltage option. Glass dial minor differences.

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature (AT535 schematic)

• Author
• Model page created by Emmanuel Manousakis. See "Data change" for further contributors.
