- Country
- Austria
- Manufacturer / Brand
- AKG Acoustics GmbH; Wien
- Year
- 1979
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 111154
-
- alternative name: AKG Akustische- ...München - siehe Austria
- Brand: Akustische- und Kino-Geräte GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / 9-52 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

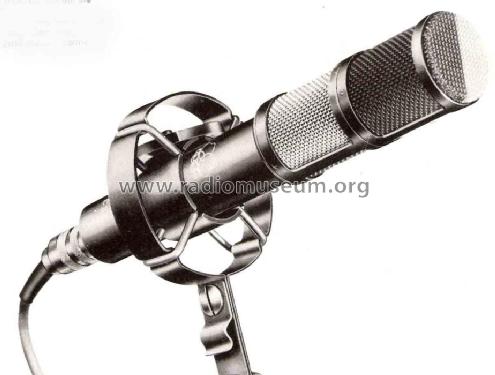

- Model: C34 - AKG Acoustics GmbH; Wien
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 33 x 196 x 0 mm / 1.3 x 7.7 x 0 inch
- Notes
- Stereo-Kondensatormikrofon; zylindrische Form, Speisung vom N62 über S42; Richtcharakteristik mittels S42 fernsteuerbar, Leerlaufübertragungsfaktor: 4,5 mV/Pa.
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Source of data
- - - Data from my own collection
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hans Haas. See "Data change" for further contributors.
