• Country
• Austria

• Manufacturer / Brand
• AKG Acoustics GmbH; Wien

• Year
• 1980 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 82615

• • alternative name: AKG Akustische- ...München - siehe Austria
  • Brand: Akustische- und Kino-Geräte GmbH

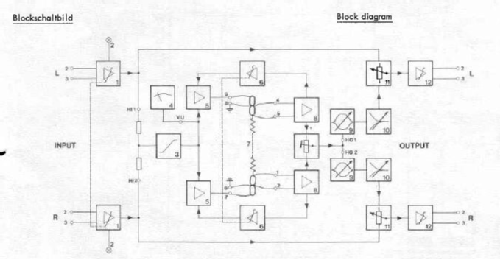

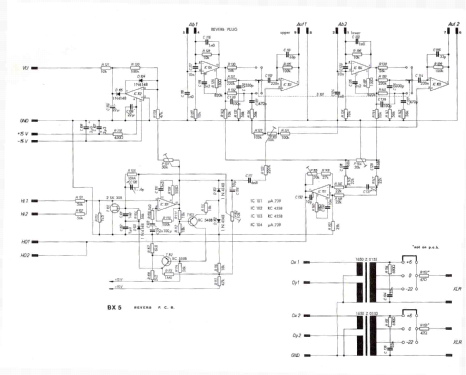

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Kleinhallgerät BX5 - AKG Acoustics GmbH; Wien

• Shape
• Rack

• Dimensions (WHD)
• 483 x 134 x 254 mm / 19 x 5.3 x 10 inch

• Notes
• Torsionswellenleiter-Prinzip-(TTL-Hallspirale, Parameter: natürl.Räume) 1/2/3 sec, Stereo-E/Ausgänge symm.: 10-45 kOhm/ -22...+12 dBm regelbar bzw 200 Ohm/ +6 od. 12 dBm, VU-Meter-Aussteuerung, 20...20000 Hz lin. (Hall 50...8000Hz). Stuf.entzerrer für Tiefen, Mitten, Begrenzer, XLR-Stecker/ Buchsen, 19'-Rack, Gehäuse abnehmbar (integr.IC-Bausteine, FET- u. norm. Transistoren)

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 500.00 DM

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Sieghart Brodka † 24.2.17. See "Data change" for further contributors.
