• Country
• Austria

• Manufacturer / Brand
• AKG Acoustics GmbH; Wien

• Year
• 1965

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 214811

• • alternative name: AKG Akustische- ...München - siehe Austria
  • Brand: Akustische- und Kino-Geräte GmbH

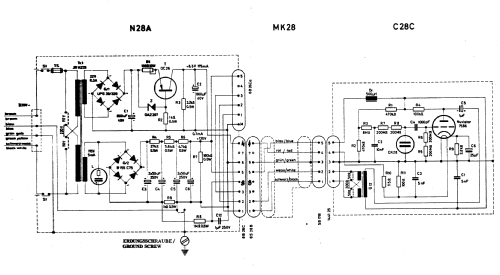

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• OC26

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Netzgerät zu Mikrofon C28C N24A - AKG Acoustics GmbH; Wien

• Shape
• Chassis only or for «building in»

• Notes
• OC26 zur Spannungsstabilisierung.
  Netzgerät zur Speisung des Kondensator-Mikrofones Type C28C.
  Ausgangsspannungen 6,3V 175mA, 120V Anode (für Nuvistor im Mikrofongehäuse).
  Steckverbinder 6B26Ca und 8B26C.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
