- Country
- Austria
- Manufacturer / Brand
- AKG Acoustics GmbH; Wien
- Year
- 1980 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 344960
-
- alternative name: AKG Akustische- ...München - siehe Austria
- Brand: Akustische- und Kino-Geräte GmbH

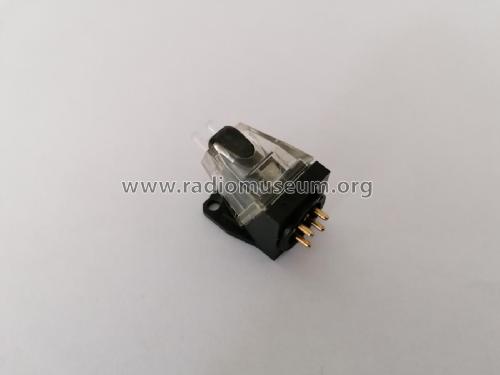

Foto de Francisco Martins
Foto de Francisco Martins
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: P7E - AKG Acoustics GmbH; Wien
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 20 x 20 x 30 mm / 0.8 x 0.8 x 1.2 inch
- Notes
-
- Stylus: elliptical 0.0004x x0.0008 (P7E)
- Effective mass: 0.6 g
- Frequency response: 10 to 21,500 Hz
- Output voltage: 4.5 mV
- Tracking force: 1.5 to 2.5 g
- Channel separation: 25 dB
- Optimum load: 47 kΩ
- Mounting: standard 1/2"
- Weight: 5.86 g
- Connection: 4 terminals
- Net weight (2.2 lb = 1 kg)
- 0.006 kg / 0 lb 0.2 oz (0.013 lb)
- Author
- Model page created by Francisco Martins. See "Data change" for further contributors.
