• Country
• France

• Manufacturer / Brand
• Alfar Electronic; Paris

• Year
• 1955

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 146426

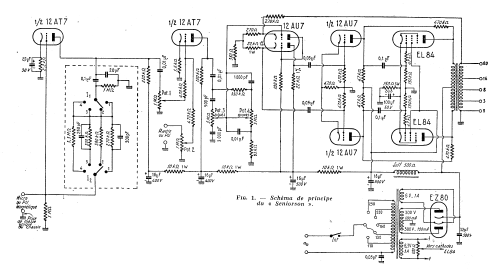

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AT7 12AU7 12AU7 EL84 EL84 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 14 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplificateur Seniorson - Alfar Electronic; Paris

• Dimensions (WHD)
• 360 x 180 x 150 mm / 14.2 x 7.1 x 5.9 inch

• Notes
• Double Push-Pull, 2 entrées mélangeables.

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1956

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
