• Country
• France

• Manufacturer / Brand
• Alta, Fernand Bouchez (Boucher); Breuil-le-Sec (Oise)

• Year
• 1924 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 357735

• • alternative name: ALTA, France

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• Radio-Micro Radio-Micro Radio-Micro Radio-Micro

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material

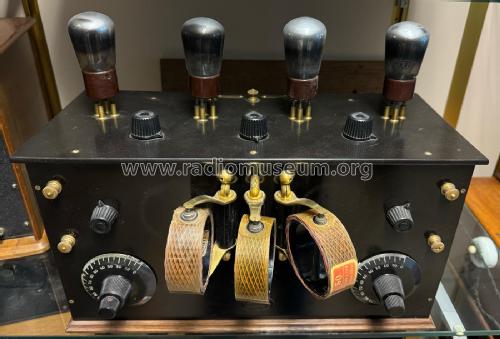

• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Poste à 4 lampes extérieures - Alta, Fernand Bouchez Boucher;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 405 x 320 x 260 mm / 15.9 x 12.6 x 10.2 inch

• Notes

• Sekundärempfänger. Frontplatte mit 3-fach Spulenkoppler, Spulen selbst drehbar in Kontaktzungen gelagert. Obenliegende Heizregler.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Mentioned in
• Radios von gestern, 1. Auflage (S.92 Bild 188)

• Literature/Schematics (1)

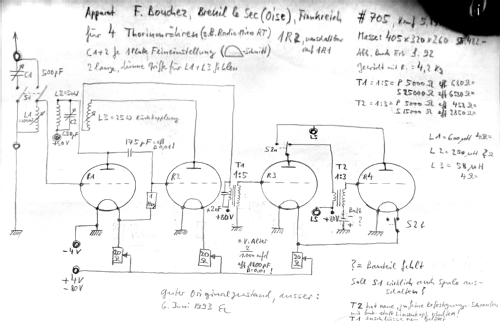

• -- Schematic

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
