Radiola B15

• Paese
• Australia

• Produttore / Marca
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Anno
• 1961–1972

• Categoria
• Radio (o sintonizzatore del dopoguerra WW2)

• Radiomuseum.org ID
• 208388

• Immagini
• Schemi

Previous Next

Previous Next

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

• Numero di tubi
• 5

• Valvole
• 6BE6 6BA6 6AV6 6AQ5 6X4

• Principio generale
• Supereterodina (in generale); ZF/IF 455 kHz

• N. di circuiti accordati
• 6 Circuiti Mod. Amp. (AM)

• Gamme d'onda
• Solo onde medie (OM).

• Tensioni di funzionamento
• Alimentazione a corrente alternata (CA) / 200 - 260 Volt

• Altoparlante
• AP magnetodinamico (magnete permanente e bobina mobile)

• Materiali
• Plastica (non bachelite o catalina)

• Radiomuseum.org
• Modello: Radiola B15 - Amalgamated Wireless

• Forma
• Soprammobile compatto/con bordi arrotondati/midget senza pulsantiera/tastiera.<= 35 cm (Sometimes with handle but for mains only).

• Dimensioni (LxAxP)
• 13.25 x 8.25 x 5.875 inch / 337 x 210 x 149 mm

• Annotazioni

• AWA Radiola Model B15

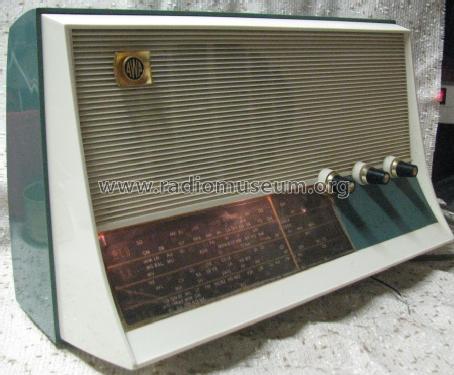

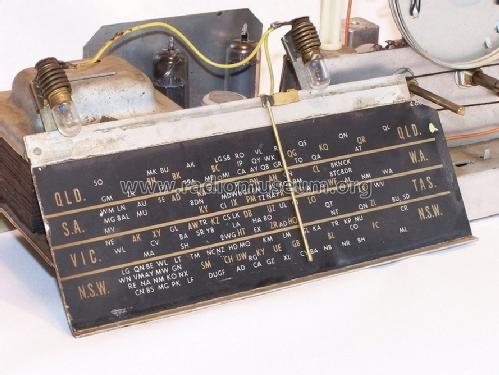

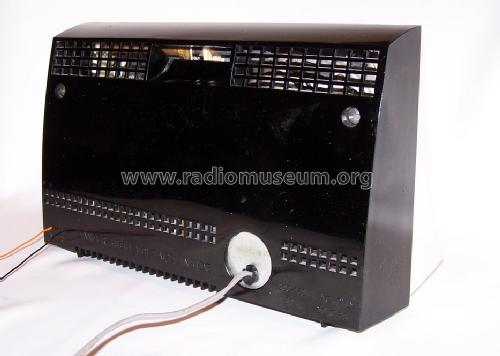

  A modern designed mantel radio with fingertip adjustment to tuning, volume and tone with small diameter torpedo type control knobs. High sensitivity oval speaker. Five valve AC operated. Colours: black. sherwood green, oriental red and deep lavender, all with bone white or mist blue with vista blue.

  This model was a valve mantel mainstay throughout the 1960's and was still being sold new until 1972. By 1972 the B15 was only available in grey.  Price in 1972 was $65.

  Silicon Chip, July 2013, page 93, proposes a modification to prevent radiated IF feeding back into the front end which can cause instability.

  They suggest adding two 47pF caps. One between the junction of R6 & R8 and chassis & the other from pin 1 (or 7) of the 6AQ5 to the chassis. This will drop the unwanted IF by 20 to 30dB.

  See also Electrice Model E516M, Westinghouse Model W516M and transistor model AWA Model B23
