Super Luxe
Ambiance-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Ambiance-Radio; Paris
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 142327

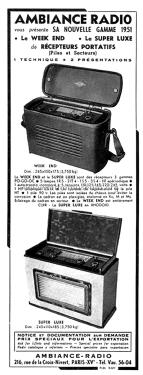

Toute la Radio 1951
Toute la Radio 1951
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type) / AC: 110; 125; 145; 220; 245 / ? & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Super Luxe - Ambiance-Radio; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 254 x 185 x 110 mm / 10 x 7.3 x 4.3 inch
- Notes
-
3 gammes d'ondes. HF apériodique. HP elliptique de 10 x 14 cm.
Alimentation sur piles ou sur secteur alternatif de 110 à à 245 volts. Auto-transfo inforporé.
Régéneration de la pile HT.Coffret en Rhodoïd.
Voir aussi modèle Week-End à même caracteristiques techniques.
- Net weight (2.2 lb = 1 kg)
- 3.750 kg / 8 lb 4.2 oz (8.26 lb)
- Literature/Schematics (1)
- Toute la radio (1951)
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
