- Country
- France
- Manufacturer / Brand
- American Radio Corporation France (Arcorp, Micro-Hétérodyne); Paris, Montrouge
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 210825
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

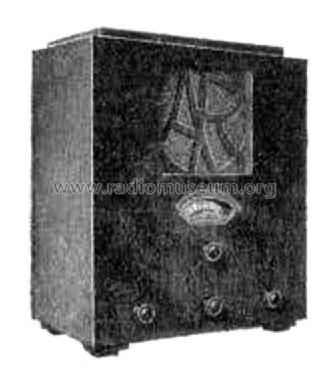

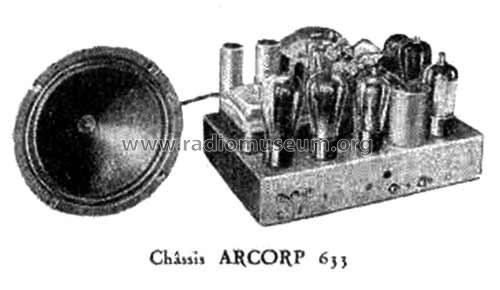

- Model: 633 - American Radio Corporation
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 370 x 480 x 250 mm / 14.6 x 18.9 x 9.8 inch
- Notes
-
Équipé avec lampes américaines. Réglage de tonalité. Prise pick.up.
Quatre exécutions pour secteur alternatif :
- modèle 110 volts, 50 périodes, 2300 Fr
- modèle 110 volts, 25 périodes, 2600 Fr
- modèle 220 volts, 50 périodes, 2500 Fr
- modèle 220 volts, 25 périodes, 2700 Fr
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Mentioned in

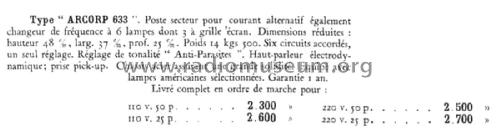

- Au Pigeon Voyageur, Documentation générale de la Radio, 1932
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
