• Country
• France

• Manufacturer / Brand
• American Radio Corporation France (Arcorp, Micro-Hétérodyne); Paris, Montrouge

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 287556

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

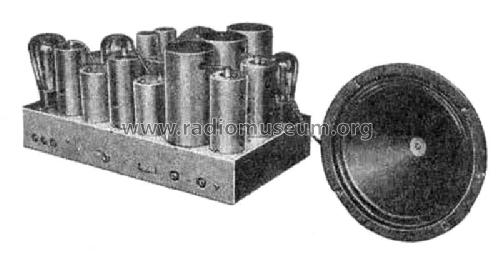

• Model: Monotrole [modèle 1933, continu] - American Radio Corporation

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 440 x 530 x 260 mm / 17.3 x 20.9 x 10.2 inch

• Notes

• Couvre la gamme de 200 à 2000 m. Sélectivité 9 kc. Prise pick-up.

• Net weight (2.2 lb = 1 kg)
• 18.5 kg / 40 lb 12 oz (40.749 lb)

• Price in first year of sale
• 3,200.00 FRF

• Mentioned in
• Au Pigeon Voyageur, Documentation générale de la Radio, 1932
