• Country
• France

• Manufacturer / Brand
• Antena; Paris

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131802

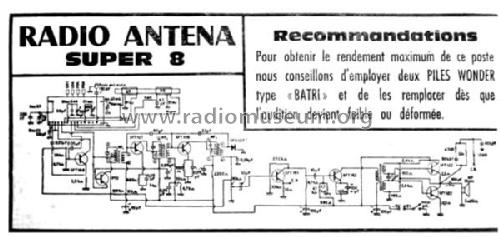

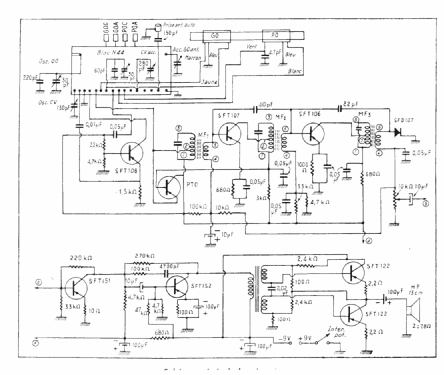

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• SFT108 PTO SFT107 SFT106 SFT151 SFT152 or. SFT352 SFT122 SFT122 SFD107

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Super 8 [2 gammes] - Antena; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 175 x 60 mm / 9.8 x 6.9 x 2.4 inch

• Notes

• Clavier 4 touches GO cadre, GO antenne, PO cadre, PO antenne. Cadre ferrite 20 cm. Prise antenne-voiture commutée par touche.

  Coffret gainé 2 tons, coloris divers.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 258.00 FRF

• Mentioned in
• Radio Télévision Pratique

• Literature/Schematics (1)
• Le Haut-Parleur

• Literature/Schematics (2)
• Catalogue Général 1962, P.-M. Bardon

• Author
• Model page created by Jacky Parmentier. See "Data change" for further contributors.
