- Country
- France
- Manufacturer / Brand
- AOIP, AOP (A.O.I.P., A.O.P.), Association des Ouvriers en Instruments de Précision; Paris
- Year
- 1988 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 220503

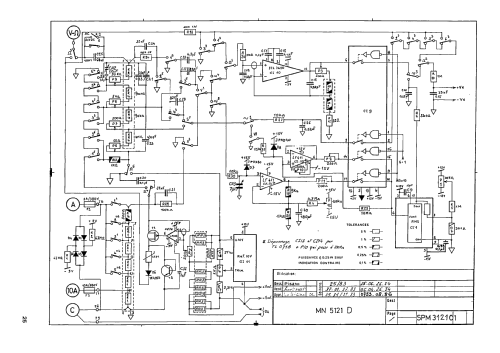

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Multipreci MN-5121 - AOIP, AOP A.O.I.P., A.O.P.,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 215 x 88 x 269 mm / 8.5 x 3.5 x 10.6 inch
- Notes
- Cet appareil permet la mesure de: Vdc de 10µV à 1KV. Vac RMS de 10µV à 1KV avec ou sans composante continue. Idc de 10nA à 10A. Iac RMS de 10nA à 10A. Résistances de 10m Ohm à 20M Ohms. Il possède aussi une fonction "test diodes". Sortie IEEE488.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
