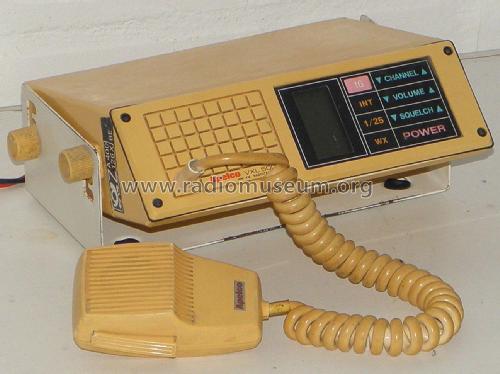

VHF-FM Radiotelephone VXL 5000

Apelco Co.; San Francisco

Data
Forum
Pictures
Collections

  • Year
  • 1989 ??
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 293102

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 13,6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: VHF-FM Radiotelephone VXL 5000 - Apelco Co.; San Francisco
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 210 x 62 x 200 mm / 8.3 x 2.4 x 7.9 inch
  • Notes

  • Sprechfunkgerät für den Seefunk im 2 m-Band, Frequenzbereich 156,050 bis 162,025 MHz.
    Frequenzmodulation, umschaltbar USA- bzw. internationale Kanäle, zusätzlich 9 Wetterkanäle, Schnellzugriff auf Kanal 16. Sendeleistung 1 W / 25 W.
    Deutsche Zulassung Z A400 126 X BE
    Hergestellt in Japan.

    VHF marine radio. Frequency range 156,050 to 162,025 MHz. Frequency modulation. Switchable USA and / or international channels. Nine weather channels with fast access to channel 16. Transmission power 1 W / 25 W. German approval Z A400 126 X BE Made in Japan.

  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
