- Country
- France
- Manufacturer / Brand
- Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237863

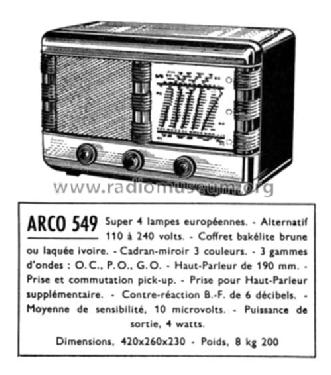

Dépliant 1949/50
Dépliant 1949/50
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch
- Power out
- 4 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 549 - Arco Jicky, Le Matériel
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 260 x 230 mm / 16.5 x 10.2 x 9.1 inch
- Notes
-
4 lampes européennes. Cadran miroir 3 couleurs. Contre-réaction BF de 6 dB. Prises pick-up et HP supplémentaire.
Coffret bakélite brune ou laquée ivoire.
Prix coffret brun: détail 14500 Fr, net 9830 Fr; coffret ivoire: détail 15750 Fr, net 10700 Fr (Tarif 1949/50).
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Mentioned in
- -- Original prospect or advert (Dépliant 1949/50)
- Literature/Schematics (2)
- -- Original prospect or advert (B. Dumontier, Tarif 1949/50)
