- Country
- France
- Manufacturer / Brand
- Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris
- Year
- 1949–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144115
J.M 2014

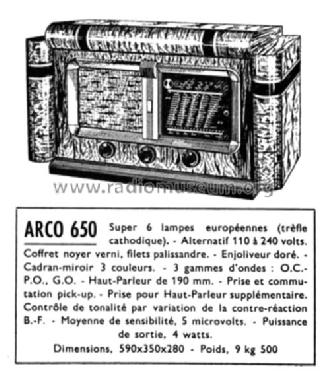

Dépliant 1949/50
Dépliant 1949/50
Vue AR J.M 2014
Vue châssis J.M 2014
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 650 Luxe [Bois] - Arco Jicky, Le Matériel
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 350 x 280 mm / 23.2 x 13.8 x 11 inch
- Notes
-
3 gammes d'ondes: OC, PO, GO. Prises pick-up et HP supplémentaire. Contrôle de tonalité par variation de la contre-réaction BF.
Coffret noyer verni, filets palissandre. Enjoliveur doré.
Prix détail 18250 Fr, net 12420 Fr (Tarif 1949/50).
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 19,500.00 FRF
- Mentioned in
- -- Original prospect or advert (Dépliant 1949/50)
- Literature/Schematics (2)
- Radio Constructeur et Dépanneur (No. 73, Nov. 1951 / Guide des récepteurs 51-52)
- Literature/Schematics (3)
- -- Original prospect or advert (B. Dumontier, Tarif 1949/50)
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
