• Country
• France

• Manufacturer / Brand
• Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334191

• Number of Tubes
• 4

• Valves / Tubes
• 6K7 6J7 25L6 25Z6

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s); Anode bend detection

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-121 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite case

• from Radiomuseum.org

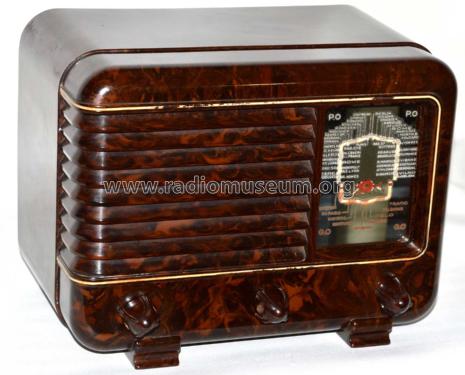

• Model: Jicky 4 Type 404 - Arco Jicky, Le Matériel

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 230 x 180 x 140 mm / 9.1 x 7.1 x 5.5 inch

• Notes

• Schaltbild weitgehend identisch mit Jicky 4 Typ 384

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
