• Country
• France

• Manufacturer / Brand
• Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68712

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

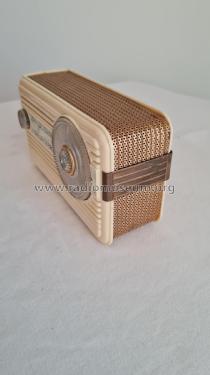

• Model: Jicky Lucky - Arco Jicky, Le Matériel

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 180 x 110 x 65 mm / 7.1 x 4.3 x 2.6 inch

• Notes

• Lampe de cadran 6,3 V / 0,1 A.

  Warning: Autotransformator

  Known colors: ivory & bordeaux

• Price in first year of sale
• 9,975.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 6910)

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR) (No. 817)

• Literature/Schematics (2)
• -- Original prospect or advert (Publicité)
