• Country
• France

• Manufacturer / Brand
• Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134088

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

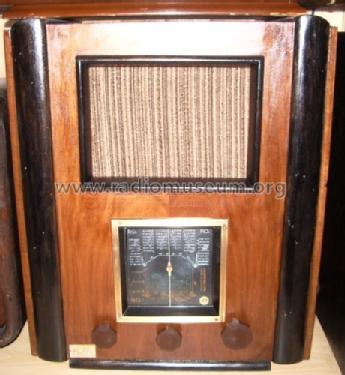

• Model: R5 - Arco Jicky, Le Matériel

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 380 x 250 x 450 mm / 15 x 9.8 x 17.7 inch

• Notes

• Serie "R". Lampe AF3 fonctionne comme préamplificatrice pour MF et BF.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 875.00 FRF

• Mentioned in
• -- Original prospect or advert (Publicité pour Salon 1936)

• Author
• Model page created by Serge Laffont. See "Data change" for further contributors.
