• Country
• France

• Manufacturer / Brand
• Arco Jicky, Le Matériel Radioélectrique, CFR (C.F.R., Compagnie Française de Radio); Paris

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68708

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 1T4 1T4 1S5 3Q4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110; 130; 220 / 1,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

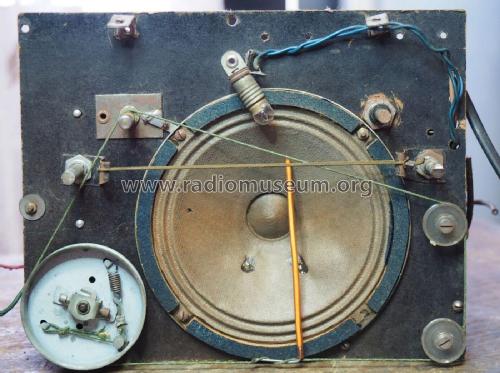

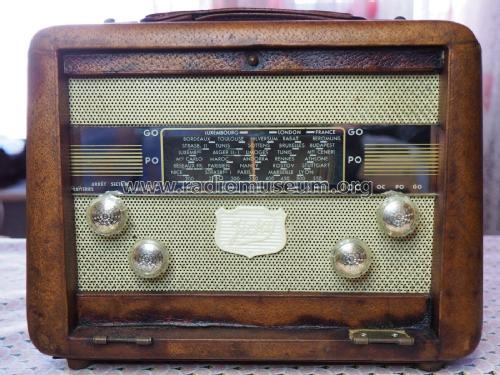

• Model: Traveller II - Arco Jicky, Le Matériel

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Lampes alternatives: DK92, DF91, DF91, DAF91 DL95.

• External source of data
• Serge Laffont/Martin Renoth

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR) (No. 813)

• Literature/Schematics (2)
• Le grand livre de la TSF (Doctsf Ref 6908)
