- Country
- France
- Manufacturer / Brand
- Central des Ondes, Les Radioélectriciens de France; Paris
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 198791
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 108 kHz; 2 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker

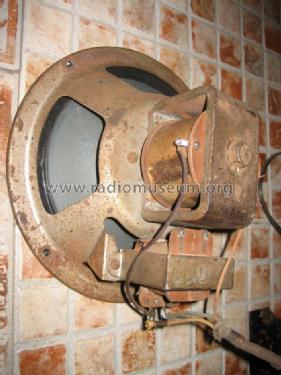

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21.5 cm = 8.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 475 - Central des Ondes, Les
- Shape

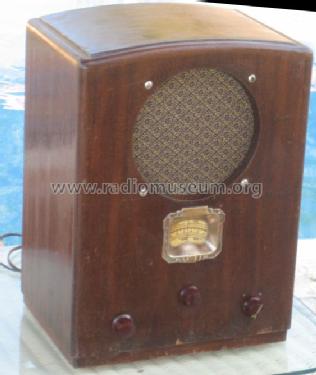

- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 435 x 320 x 230 mm / 17.1 x 12.6 x 9.1 inch
- Notes
-
Compensateur d'antenne. Circuit préselecteur. Blocs amovilbes.

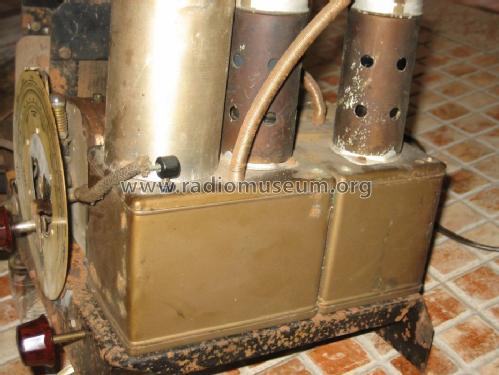

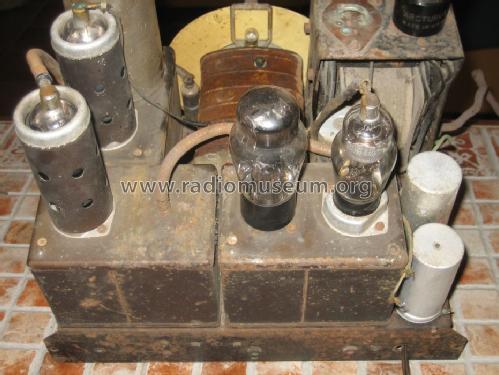

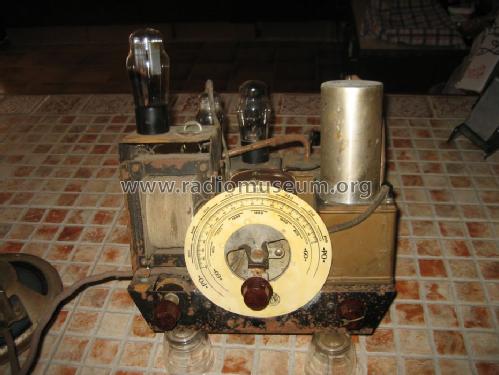

The radio employs a chassis with sub-modules: a power supply module (transformer with rectifier) and 3 completely closed modules with the tubes on top; the RF input and oscillator / mixer module with the valve 57; an IF module with the valve 58 and a detector AF module with the diode/penthode 2B7 and the final AF valve 2A5.
The oscillator coil has been mounted on top of the oscillator / mixer module. The actuation of the MW-LW switch inside the module is done by a lever from the underside. The antenna input consists of a set of two high Q top-coupled resonance circuits. All IF transformers (108 kHz) and resistors - capacitors to operate the valves are inside the closed modules.
- Price in first year of sale
- 1,690.00 FRF
- Mentioned in

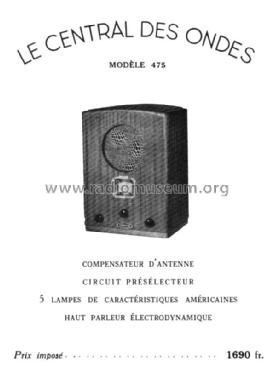

- -- Original prospect or advert (L'Ouest Éclair, 16.12.1934)
- Author
- Model page created by Nicolaas van Dijk. See "Data change" for further contributors.
- Other Models
-
Here you find 5 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Central des Ondes, Les Radioélectriciens de France; Paris
