544
Ariane; Paris
- Country
- France
- Manufacturer / Brand
- Ariane; Paris
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 252953

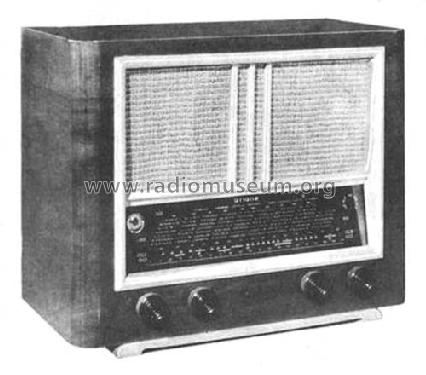

Dépliant 1948
le grand livre de la TSF
le grand livre de la TSF
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 544 - Ariane; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 515 x 410 x 265 mm / 20.3 x 16.1 x 10.4 inch
- Notes
-
4 gammes d'dondes: GO 1000 à 2000 m, PO 200 à 550 m, OC1 13 à 21 m, OC2 21 à 51 m. Prises PU et HP supplémentaire.
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref. 21602)
