• Country
• France

• Manufacturer / Brand
• Ariane; Paris

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63127

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF5 EBC3 EL3 EZ3 4678

• Main principle
• Superheterodyne (common); ZF/IF 125 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

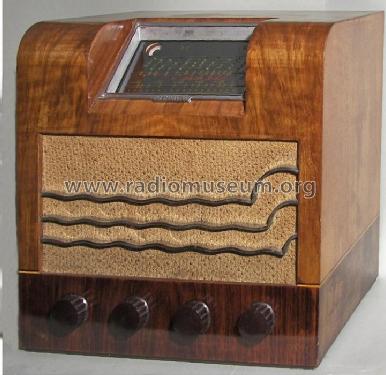

• Model: E560 [avec oeil magique] - Ariane; Paris

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 420 x 410 x 290 mm / 16.5 x 16.1 x 11.4 inch

• Notes
• statt 4678 auch EM1

• External source of data
• Serge Laffont/Martin Renoth

• Other Models

• Here you find 117 models, 97 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
