Ensemble Phono Radio S7
Ariane; Paris
- Country
- France
- Manufacturer / Brand
- Ariane; Paris
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242650
Publicité 1932 (image restaurée)
Publicité 1932
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 135 kHz; 2 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

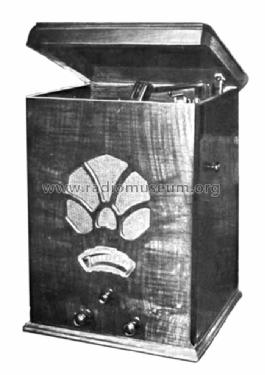

- Model: Ensemble Phono Radio S7 - Ariane; Paris
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Réglage unique, étouffeur de parasites. Prise pick-up.
Ébénisterie luxueux avec haut-parleur électrodynamique.
- Price in first year of sale
- 4,400.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 7684 (comme Combiné 7 lampes))
