• Country
• France

• Manufacturer / Brand
• Ariane; Paris

• Year
• 1933 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344961

• Number of Tubes
• 5

• Valves / Tubes
• 24 35 24 47 80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radio-phono S5 - Ariane; Paris

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 370 x 540 x 270 mm / 14.6 x 21.3 x 10.6 inch

• Notes

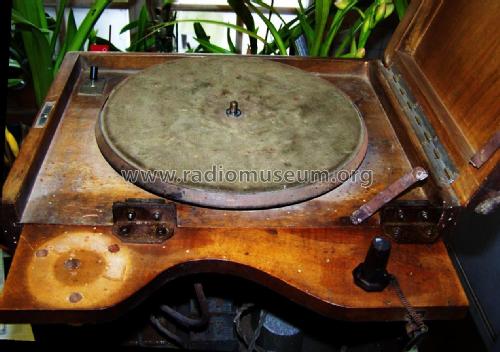

• Voir aussi modèle Ariane S5 sans phono.

  Phono de marque inconnu.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Author
• Model page created by Claude Boulet. See "Data change" for further contributors.
