• Country
• France

• Manufacturer / Brand
• Ariane; Paris

• Year
• 1938 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347053

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6U7 6Q7 6F6 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker

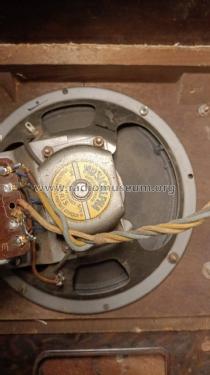

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: SF58 - Ariane; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 275 x 225 mm / 18.1 x 10.8 x 8.9 inch

• Notes

• Similar to Schneider SF168, but without magic eye.

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.

• Other Models

• Here you find 117 models, 97 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
