• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 319820

• • Brand: Aristona

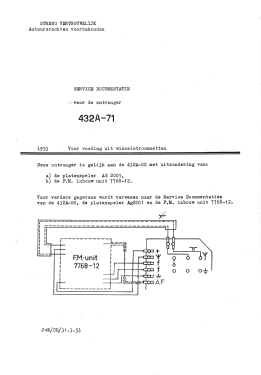

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF41 EF42 ECH42 EAF42 EM34 EBC41 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

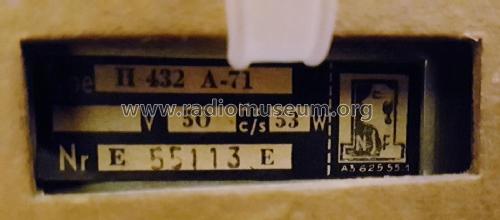

• Model: H432A -71 - Aristona; Eindhoven

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 379 x 460 x 320 mm / 14.9 x 18.1 x 12.6 inch

• Notes

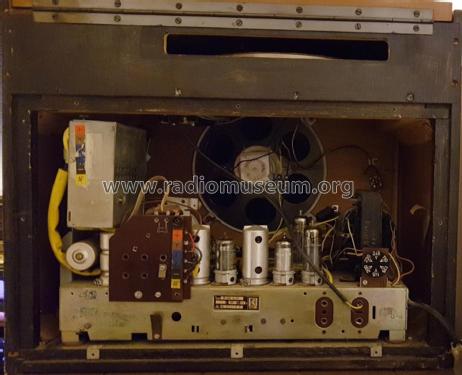

• Aristona H432A -71 with same chassis/schematic as Philips HX511-A20, with FM-unit Philips 7768-12.

  Record player Philips AG2001.

• Author
• Model page created by Pascal Ribbens. See "Data change" for further contributors.
