• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192933

• • Brand: Aristona

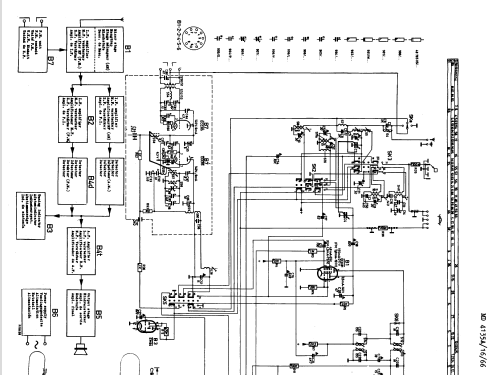

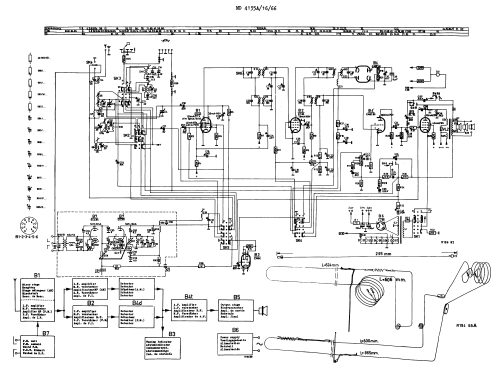

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA4135A - Aristona; Eindhoven

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 460 x 280 x 205 mm / 18.1 x 11 x 8.1 inch

• Notes
• Same chassis as the Philips B4X92A

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
