• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119226

• • Brand: Aristona

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF183 ECL86 ECL86 EM87 EM87

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

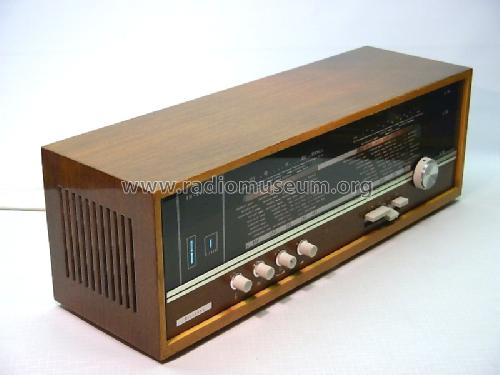

• Model: SA5234A - Aristona; Eindhoven

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 230 x 195 mm / 24.4 x 9.1 x 7.7 inch

• Notes
• See also: Philips 03RB563, Hornyphon W566A.

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Spies. See "Data change" for further contributors.
